From Shenzhen, China, the supplier of one-stop integrated solutions for injection molds and stamping molds, standard parts are in stock, non-standard parts can be customized
3 Years
| Ask Lasest Price | |
| Brand Name : | GEPE |
| Model Number : | Guide Components |
| Certification : | RoHS |
| Price : | Negotiation |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 pieces per week |
| Delivery Time : | 10~15 work days |

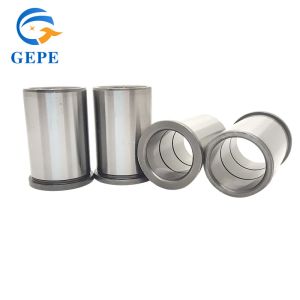

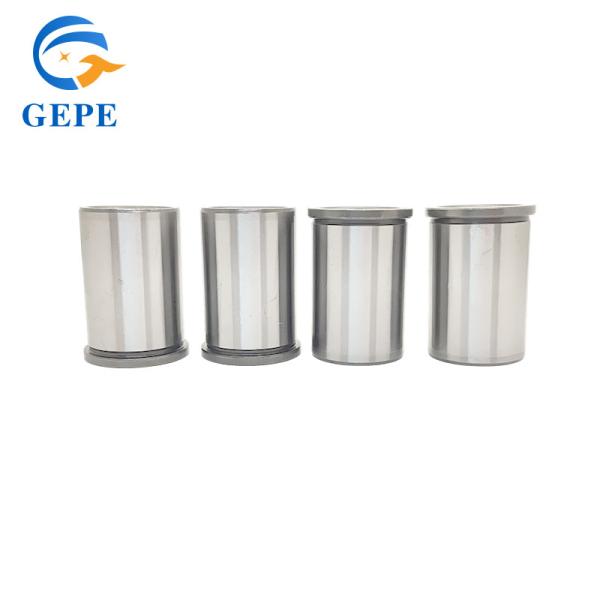

The guide bushing is a guiding part used in the mold and matched with the guide pillar , which plays a guiding role. Generally, it is used in occasions with high precision requirements for molds. If it is used together with fine positioning parts (taper fine positioning pin, quick taper fine positioning, etc.), the alignment and positioning of the cavity will be more precise.
| Type | Ød | Ød1 | ØD | L |
| (-0.005~0) | (0~0.01) | |||
| GA | 10 | 14 | 17 | 15/20/22/25/30/35/40/45 |
| 12 | 17 | 20 | 15/20/22/25/30/35/40/45/50 | |
| 14 | 19 | 22 | 15/20/22/25/30/35/40/45/50 | |
| 16 | 22 | 25 | 15/20/22/25/30/35/40/45/50 | |
| 18 | 23 | 26 | 15/20/22/25/30/35/40/45/50 | |
| 20 | 25 | 28 | 15/20/22/25/30/35/40/45/50 | |
| 25 | 32 | 35 | 15/20/22/25/30/35/40/45/50 |
| Product Name | Punching Mold Guide Bushings | Material | 20CR,40CR,SUJ2,SKD11 |
| Hardness | HRC54-56,HRC58-60 | Heat treatment method | High frequency quenching, vacuum heat treatment, quenching and tempering treatment |
| production address | ShenZhen,GuangDong,China | Size | Customized Size |
| Standard | Standard Hardware/ Plastic Parts as per MISUMI, DME, HASCO, FIBRO,
CUMSA, STRACK, DAYTON NON-Standard parts can be designed or made customized | ||
We have standard parts in stock. Please refer to the size table above. Generally, the goods can be delivered within 3 working days. If you need to customize non-standard parts, the delivery time is generally 15-20 days. For the customization of non-standard parts, please give us your drawings, clearly indicating the requirements of size, tolerance, material and quantity, and then we will quote you a preferential price.
Your inquiry will be replied within 24 hours.
Well-trained workers and more than 10 years experience.
Directly from factory to save your money.
Being efficient:3-7 days for samples and 10-35 days for quantity orders.
Small orders are acceptable for quick delivery and to help you reduce stock cost.
Custom fabrication according to your drawings ,samples or designs.
Products are packed in plastic shells and outside in cartons. As for shipping, all well-known express delivery companies and ocean shipping companies can choose, but only EMS can be used in remote areas. Terms of shipment, such as EXW, FOB and CIF, are available.
|
|
